紅外光電二極管-NIR2200D1N1

紅外光電二極管（裸管），響應(yīng)波長：900-2600nm，具有體積小、靈敏度高、暗電流低等特點。

---

描述 Description

NIR2200D1N1 photodiode is ideal for measuring both pulsed and CW fiber light sources by converting optical power into electrical current. The detector is in a TO-46 package with an anode, cathode, and case connection. The photodiode anode produces a current, which is a function of the incident light power and the wavelength. The responsivity, ?(λ), can be read from the plot on the following page to estimate the amount of photocurrent. This can be converted to a voltage by placing a load resistor, (RL), from the photodiode anode to the circuit ground.

特性 Features

• TO-46 metal housing
• High responsivity and low dark current

應(yīng)用 Applications

• Optical power meters
• Gas analysis
• Moisture meters

下載 Download

NIR2200D1N1.pdf

規(guī)格 Specifications

Parameter	Symbol	Value	Unit
Wavelength of peak responsivisity	λmax	2200	nm
Peak responsivisity (at 2200)	λP	1.35	A/W
Spectral response range		900~2600	nm
Chip size	A	1	mm2
Dark current (V=-0.2V)	ID	10.00	μA
Dark current (V=-0.5V)	ID	15.00	μA
Dark current (V=-1.0V)	ID	35.00	μA
Capacitance (V =-1V, f =1MHz）	C	240	pF
Detectivity（λ=λP）	D*	9×1010	cm·Hz1/2/W
Noise equivalent power(Vat D*)	NEP	1×10-12	W/Hz1/2
Operation temperature range	Topt	-40~85	℃
Storage temperature range	Tstor	-40~125	℃
Soldering temperature (3 s)	Tsold	260	℃
Reverse voltage	VRmax	-1V	V

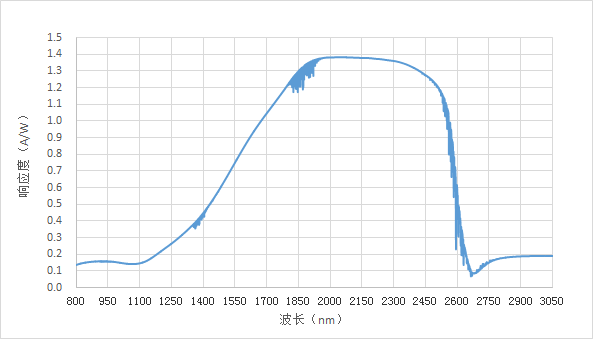

光譜響應(yīng) Spectral response

封裝尺寸 Package dimensions

---
